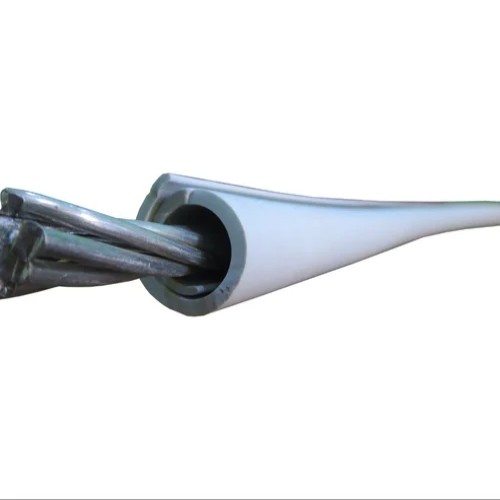

Insulated Overhead Line Cover

Name: Insulated Overhead Line Cover
Brand: AMAR INDUSTRIES
Price: 350.0 INR
Availability: InStock

350.0 INR/Meter

Get a Price/Quote

Product Details:

Size Customized Lengths (Standard: 1m, 2m, 3m)
Coating Type Extruded PVC
Installation Guideline Snap-fit, Tool-free Installation
Layer Single Layer Extrusion
Thermal Conductivity 0.17 W/mK
Surface Treatment Smooth, Anti-Tracking
Feature UV Resistant, Anti-Corrosive, Weatherproof
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Insulated Overhead Line Cover Price And Quantity

Minimum Order Quantity 2500 Meter
Price 350.0 INR/Meter

Insulated Overhead Line Cover Product Specifications

Thermal Conductivity 0.17 W/mK
Color Gray
Surface Treatment Smooth, Anti-Tracking
Feature UV Resistant, Anti-Corrosive, Weatherproof
Thickness 2 mm to 6 mm
Product Type Insulated Overhead Line Cover
Size Customized Lengths (Standard: 1m, 2m, 3m)
Coating Type Extruded PVC
Installation Guideline Snap-fit, Tool-free Installation
Layer Single Layer Extrusion
Density 1.38 Gram per cubic centimeter(g/cm3)
Tensile Strength 15 MPa
Rated Voltage Up to 11 kV
Max Withstanding Temperature 105C
Heat Conductivity Low (functions as thermal insulator)
Material High-Quality Polyvinyl Chloride (PVC)
Breakdown Voltage 25 kV/mm
Width Variable, as per line size requirement
Application Electrical Overhead Line Insulation

Operating Temperature Range -20C to +105C
Application Standard Meets IEEE and IEC standards for line insulation
Weather Resistance Excellent, suitable for outdoor environments
Corrosion Resistance Superior-resists chemicals, moisture, and pollutants
Dielectric Strength 24 kV/mm
Flexibility High; maintains performance in bending applications
UV Stability Resistant to UV degradation
Flammability Class Self-Extinguishing as per UL94 V-0
Lifespan 15 Years under standard outdoor conditions
Compatibility Compatible with bare or insulated conductors
Water Absorption <0.5% by weight

Product Description

Spotlight your electrical infrastructure with our Special, Limited Time Insulated Overhead Line Cover-a true Elite solution for distinguished professionals. Crafted from formidable, high-quality PVC, this cover boasts a self-extinguishing flammability class (UL94 V-0), robust dielectric strength (24 kV/mm), and exceptional weather resistance, making it ideal for demanding outdoor environments. UV stability, superior corrosion resistance, and high flexibility ensure long-lasting protection even in harsh conditions. Compatible with both bare and insulated conductors, this cover is engineered for effortless installation and a formidable 15-year lifespan. Each piece sets the standard for reliable, elite outdoor line insulation.

Elite Protection and Versatile Performance

The Insulated Overhead Line Cover offers formidable protection for electrical lines, combining high dielectric strength and excellent weather resistance. Ideal for general outdoor use and specific applications in harsh climates, it delivers distinguished performance for both new and retrofit installations. Its flexibility and smooth finish simplify installation and maintenance, while the snap-fit, tool-free design enhances safety. If you seek a spotlight-worthy, elite insulation solution for overhead lines, this cover exceeds expectations.

Premium Certification and Reliable Supply Handover

Distinguished by adherence to IEEE and IEC application standards, our Insulated Overhead Line Cover represents premium compliance and international reliability. With swift handover processes, we provide customizable lengths and rapid order fulfillment to meet sale price demands. As a trusted supplier and manufacturer, we maintain a formidable supply ability and offer sample availability to assure utmost confidence before purchase-ensuring clients benefit from elite, certified protection with every transaction.

FAQ's of Insulated Overhead Line Cover:

Q: How is the Insulated Overhead Line Cover installed on electrical lines?

A: The cover features a snap-fit, tool-free installation design, making the process straightforward and efficient. No special tools are needed, allowing quick installation for both new and existing lines.

Q: What are the key features that distinguish this overhead line cover from others?

A: This line cover is made from high-quality, self-extinguishing PVC, with a dielectric strength of 24 kV/mm and superior UV and corrosion resistance. Its distinguished longevity and flexibility suit various harsh outdoor conditions.

Q: When should I consider using this overhead line cover for my installation?

A: Use this product when your overhead lines require enhanced insulation, UV protection, weather resistance, or compliance with IEEE and IEC standards-especially in demanding outdoor environments.

Q: Where can the Insulated Overhead Line Cover be applied?

A: It is specially designed for outdoor electrical overhead line insulation and is compatible with both bare and insulated conductors, making it suitable for various installations, industries, and infrastructure projects.

Q: What is the certification status and minimum order process?

A: Each cover meets IEEE and IEC standards, and bulk as well as customized orders are supported. Premium samples are available upon request, streamlining your procurement and approval process.
