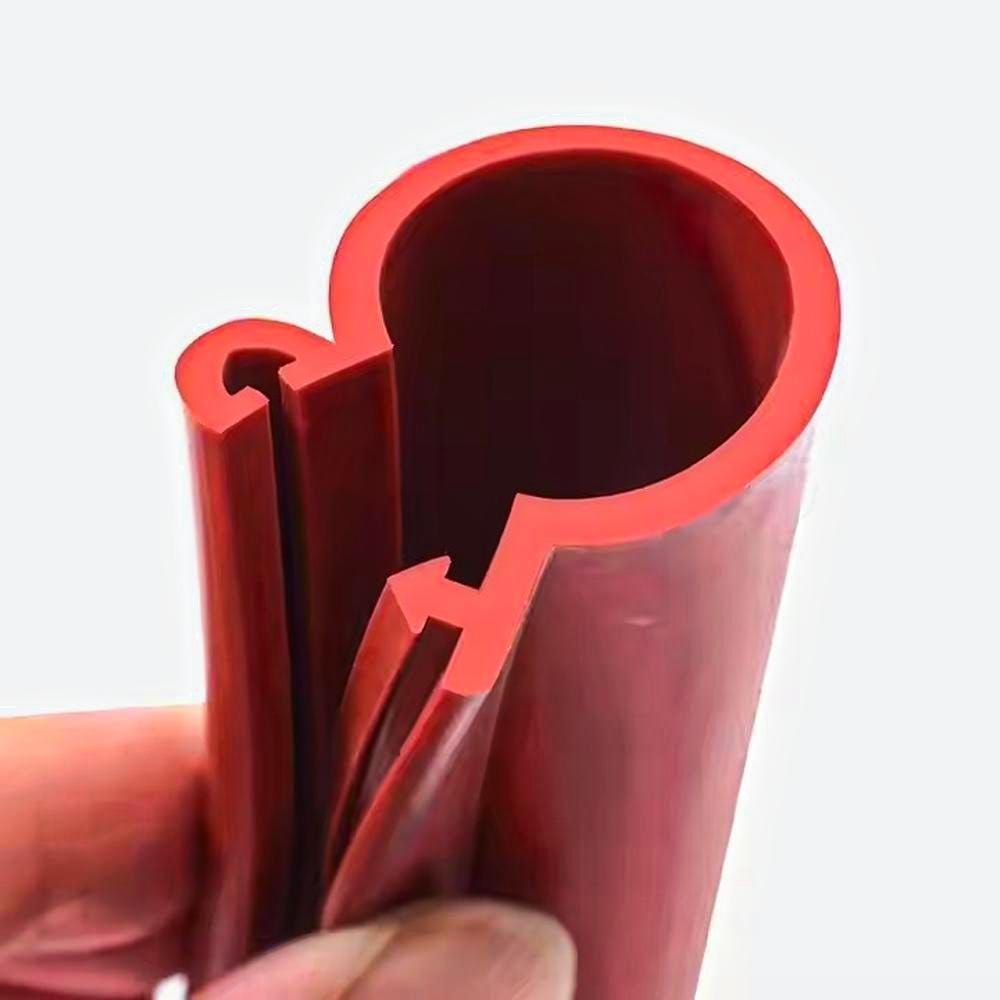

Medium Voltage Line Cover

Name: Medium Voltage Line Cover
Brand: AMAR INDUSTRIES
Price: 300.0 INR
Availability: InStock

300.0 INR/Meter

Get a Price/Quote

Product Details:

Feature UV resistant, hydrophobic, flexible, and flame-retardant
Surface Treatment Smooth, glossy finish for weather resistance
Installation Guideline Snap-fit, to be installed by trained personnel with insulated tools
Thermal Conductivity 0.25 W/mK
Size Custom lengths, commonly 1m, 2m, or 3m per piece
Density 1.2 Gram per cubic centimeter(g/cm3)
Coating Type Single layer, high-dielectric polymer
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Medium Voltage Line Cover Price And Quantity

Price 300.0 INR/Meter
Minimum Order Quantity 2500 Meter

Medium Voltage Line Cover Product Specifications

Rated Voltage Up to 15 kV
Max Withstanding Temperature 90C (continuous), 130C (short-term)
Breakdown Voltage > 22 kV/mm
Feature UV resistant, hydrophobic, flexible, and flame-retardant
Surface Treatment Smooth, glossy finish for weather resistance
Thickness 3 mm - 5 mm
Thermal Conductivity 0.25 W/mK
Width Varies as per cable diameter, typically 70-120 mm
Installation Guideline Snap-fit, to be installed by trained personnel with insulated tools
Tensile Strength >12 MPa
Size Custom lengths, commonly 1m, 2m, or 3m per piece
Color Red
Coating Type Single layer, high-dielectric polymer
Density 1.2 Gram per cubic centimeter(g/cm3)
Heat Conductivity 0.25 W/mK
Layer Single
Application Insulation and protection of overhead medium voltage lines
Product Type Medium Voltage Line Cover
Material High-quality cross-linked polyethylene (XLPE)

Dielectric Strength 25 kV/mm
Water Absorption <0.5% after 24 hours
Service Life > 20 years in outdoor conditions
Ozone Resistance Meets ASTM D1171
Flame Retardancy Complies with IEC 60695-2-11
Operating Temperature Range -40C to +130C
Flexibility High flexibility at low and high temperatures
Weight Approximately 0.5 - 1 kg/m depending on size
Environmental Compliance RoHS and REACH compliant
Weather Resistance Excellent outdoor and UV resistance

Product Description

Experience the new standard of safety and performance with our Medium Voltage Line Cover! Crafted from masterful high-quality cross-linked polyethylene (XLPE), this sizzling innovation offers remarkable dielectric strength at 25 kV/mm and majestic weather resistance built for the harshest outdoor conditions. Complying with top flame retardancy standards (IEC 60695-2-11) and boasting exceptional flexibility and ozone resistance, this product is engineered for long-term use-over 20 years in outdoor settings. Try it now for flawless insulation and robust protection of overhead medium voltage lines!

Material Features, Functionality, and Versatile Applications

Manufactured using high-quality XLPE, the Medium Voltage Line Cover ensures excellent dielectric properties and superb weather resistance. Its single-layer, UV-resistant, and hydrophobic design offers reliable insulation and firm protection against environmental hazards. Noted for its flexibility at various temperatures and low water absorption, it serves a range of applications-from reliably insulating medium voltage overhead lines to safeguarding installation cables in diverse outdoor environments. Custom lengths and sizes ensure compatibility with multiple cable diameters.

FOB Port, Certifications, and Packaging for Seamless Supply

Order processing and transportation are efficient through major FOB ports, ensuring timely supply to distributors, dealers, and exporters alike. Each Medium Voltage Line Cover is RoHS and REACH compliant, vouching for environmental responsibility and international standards. Meticulously packaged to prevent damage during transit, products arrive in sealed bundles or customized crates, so order fulfillment is systematic and structure-oriented-ideal for wholesalers or large-scale installation projects requiring secure logistics.

FAQ's of Medium Voltage Line Cover:

Q: How is the Medium Voltage Line Cover installed?

A: Installation involves a user-friendly snap-fit system, best executed by trained personnel using properly insulated tools, ensuring maximum safety and effectiveness on live lines.

Q: What certifications and standards does the cover meet?

A: The product complies with key certifications such as RoHS and REACH and aligns with IEC 60695-2-11 for flame retardancy and ASTM D1171 for ozone resistance, guaranteeing broad application acceptance.

Q: What are the principal material features of this line cover?

A: It features masterful construction from high-grade cross-linked polyethylene (XLPE), providing majestic dielectric strength, flexibility over wide temperature ranges, and robust UV and weather resistance.

Q: Where is the Medium Voltage Line Cover typically used?

A: It is predominantly used for the insulation and protection of overhead medium voltage power lines but also finds application in safeguarding various outdoor cabling systems in demanding environments.

Q: When should the Medium Voltage Line Cover be replaced?

A: Designed for a service life of over 20 years outdoors, replacement is recommended if visible wear, significant damage, or mechanical failure is detected during routine inspections.
