Overhead Line Cover

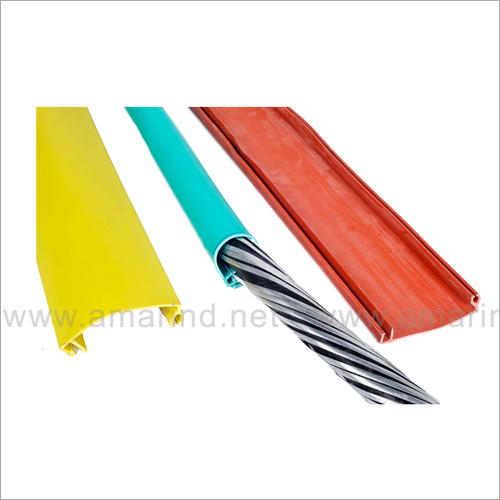

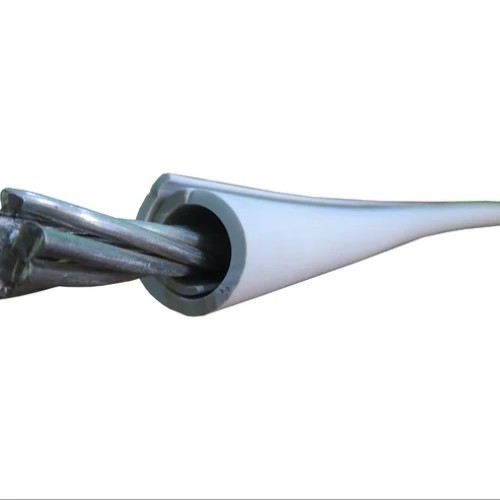

Name: Overhead Line Cover
Brand: AMAR INDUSTRIES
Price: 300.0 INR
Availability: InStock

300.0 INR/Meter

Get a Price/Quote

Product Details:

Coating Type Non-metallic insulation layer
Installation Guideline Snap-on or wrap-around design for easy field installation, Ensure surface is clean before application
Surface Treatment Smooth extruded finish
Thermal Conductivity Low, below 0.4 W/mK
Size Suitable for conductors from 10 mm2 to 150 mm2
Density 1.2 Gram per cubic centimeter(g/cm3)
Layer Single layer, can be customized for dual layer
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Overhead Line Cover Price And Quantity

Minimum Order Quantity 2500 Meter
Price 300.0 INR/Meter

Overhead Line Cover Product Specifications

Heat Conductivity Low, Less than 0.4 W/mK
Surface Treatment Smooth extruded finish
Rated Voltage 11 kV to 36 kV (varies as per application)
Thermal Conductivity Low, below 0.4 W/mK
Product Type Overhead Line Cover
Breakdown Voltage Above 30 kV/mm
Size Suitable for conductors from 10 mm2 to 150 mm2
Tensile Strength >12 MPa
Application Insulation and protection of overhead power lines
Coating Type Non-metallic insulation layer
Installation Guideline Snap-on or wrap-around design for easy field installation, Ensure surface is clean before application
Thickness 3 mm to 5 mm (depending on rating)
Material High Quality Insulating Polymeric Material (such as Polyvinyl Chloride or Cross-linked Polyethylene)
Width 25 mm to 50 mm (customizable)
Color Orange (standard for high visibility)
Feature UV resistant, Weatherproof, Flexible, Flame retardant
Density 1.2 Gram per cubic centimeter(g/cm3)
Max Withstanding Temperature Up to 105C continuous
Layer Single layer, can be customized for dual layer

Shape Semi-circular or split tube (easy installation on live lines)
Moisture Absorption Less than 0.07%
Compliance Meets IEC 60684 and ASTM standards
Environmental Resistance Resistant to acids, alkalies, and industrial pollutants
Weight Approximately 350 g/meter
UV Resistance Yes, designed for outdoor use
Shelf Life Up to 5 years under recommended storage conditions
Flame Retardancy V-0 Class as per UL94
Packing Typically supplied in rolls of 25 meters
Operating Temperature Range -10C to +105C
Dielectric Strength 20 kV/mm minimum

Product Description

Discover the phenomenal Overhead Line Cover-your prime solution for protecting power lines with new and advanced insulation. This hot deal features limited stock, combining uncommon UV resistance, V-0 flame retardancy, and impressive dielectric strength (20 kV/mm minimum). Manufactured from high-quality polymeric materials, it withstands harsh climates, chemicals, and industrial exposure. Its flexible, semi-circular, or split tube design allows quick installation-even on live wires. Available in customizable sizes and rated for 11-36 kV, it ensures reliable protection. Ideal for dealers, exporters, and field use. Don't miss this limited offer!

Versatile Application and Superior Material Excellence

Overhead Line Cover is engineered for insulation and protection of outdoor overhead power lines. Its robust insulating polymeric material-like cross-linked polyethylene or polyvinyl chloride-provides exceptional resistance to UV, weather, acids, and industrial pollutants, ensuring long life and safety. The cover suits conductors sized 10 mm2 to 150 mm2 and features a flexible semi-circular or split tube design for easy installation even on live lines, making it perfect for utility companies, distributors, and field engineers.

Convenient Payment, Packaging, and Global Market Reach

We offer flexible payment terms for the Overhead Line Cover to suit various business needs while keeping expenditure optimal. Our product is securely packed in standard 25-meter rolls for effective transportation and reduced handling. Ideal for global export markets, including utilities, wholesalers, and infrastructure projects. Each order receives comprehensive packaging details, ensuring the product stays in top condition from dispatch to installation. Optimize your infrastructure investments with this high-value solution!

FAQ's of Overhead Line Cover:

Q: How do I install the Overhead Line Cover on live power lines?

A: Installation is simple due to the snap-on or wrap-around semi-circular or split tube design. Ensure the conductor surface is clean, then snap or wrap the cover in place for immediate insulation, even during live-line operations.

Q: What benefit does UV resistance provide for outdoor applications?

A: UV resistance ensures the Overhead Line Cover remains durable and unaffected by prolonged sun exposure, maintaining insulation quality and extending service life in all weather conditions.

Q: Where is the Overhead Line Cover commonly used?

A: It is widely utilized for insulating and protecting overhead power lines in distribution grids, substations, and outdoor utility installations, especially where exposure to environmental stress and pollution is expected.

Q: What is the process for ordering and export?

A: Place your order with your required specifications such as size, thickness, and roll length. The product is packaged in 25-meter rolls and shipped worldwide with secure packaging to ensure it arrives ready for immediate use.

Q: How does the Overhead Line Cover comply with international standards?

A: It meets IEC 60684 and ASTM specifications, and its flame retardancy is V-0 class as per UL94, guaranteeing safety and performance for global infrastructure requirements.

Q: What materials are used in the Overhead Line Cover and why?

A: Manufactured using premium insulating polymeric materials like PVC or cross-linked polyethylene, these materials offer high dielectric strength, flexibility, weatherproofing, and resistance to acids and pollutants, making them suitable for tough outdoor environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Overhead Line Insulation Sleeve (OLIS)' category

Overhead Line Insulation Sleeve Price : 300.0 INR/Meter Minimum Order Quantity : 2500 Size : Standard and custom sizes available Breakdown Voltage : 15 kV/mm or higher Heat Conductivity : Low (typically less than 0.4 W/mK) Product Type : Overhead Line Insulation Sleeve Rated Voltage : Up to 36 kV Surface Treatment : Smooth, UV resistant Thermal Conductivity : Low thermal conductivity material Installation Guideline : Snap fit or slide on to overhead conductors Thickness : 1.5 mm to 5 mm Application : Electrical overhead line insulation, conductor protection, prevention of phasetophase contact Tensile Strength : 10 MPa Coating Type : Nonmetallic insulation material Feature : Weather resistant, nontracking, flexible, anticorrosive Width : 20 mm to 100 mm (customizable) Material : Polyvinyl Chloride (PVC), Polyethylene (PE), or CrossLinked Polyethylene (XLPE) Color : Yellow, Green, Red, customizable Max Withstanding Temperature : 105C Layer : Single or multilayered construction Density : 1.5 Gram per cubic centimeter(g/cm3)

Send Inquiry

Overhead Conductor Cover Price : 300.0 INR/Meter Minimum Order Quantity : 2500 Size : Custom lengths available (usually 1 m to 3 m pieces) Breakdown Voltage : 24 kV/mm Heat Conductivity : Low thermal conductivity for insulation Product Type : Overhead Conductor Cover Rated Voltage : Up to 36 kV Surface Treatment : Smooth finish with antiaging properties Thermal Conductivity : 0.25 W/mK Installation Guideline : Toolfree snap fit design for easy field installation Thickness : 2 mm 5 mm Application : Insulation and protection for overhead power lines Tensile Strength : 10 MPa Coating Type : None (solid insulating polymer) Feature : UV resistant, weatherproof, flexible, nontracking Width : Varies by model, typically 30 mm 90 mm Material : High quality insulating polymer (UV stabilized PVC or Silicone Rubber) Color : Red (other colors available on request) Max Withstanding Temperature : 40C to +110C Layer : Single layer, homogeneous construction Density : 1.45 Gram per cubic centimeter(g/cm3)

Send Inquiry

Overhead Line Insulation Sleeve (OLIS) Price : 200.0 INR/Piece Minimum Order Quantity : 1000 Size : Custom length and diameter as per conductor size Breakdown Voltage : Over 20 kV/mm Heat Conductivity : Low, for insulation Product Type : Overhead Line Insulation Sleeve (OLIS) Rated Voltage : 11 kV to 33 kV Surface Treatment : Smooth, UV stabilized Thermal Conductivity : Very low, minimizes heat transfer Installation Guideline : Install manually over overhead conductors during shutdown or live line using tools Thickness : 2 mm to 5 mm Application : Insulation of exposed overhead conductors and jumpers, prevention of birdrelated faults Tensile Strength : 12 MPa Coating Type : Single layer or dual coating Feature : UV resistant, weatherproof, high dielectric strength, antitracking Width : 25 mm to 100 mm Material : Polyvinyl Chloride (PVC) or H.D. Polymer Color : Yellow, Red, Green, Customizable Max Withstanding Temperature : Up to 105C Layer : Single or double, as per requirement Density : 1.5 Gram per cubic centimeter(g/cm3)

Send Inquiry

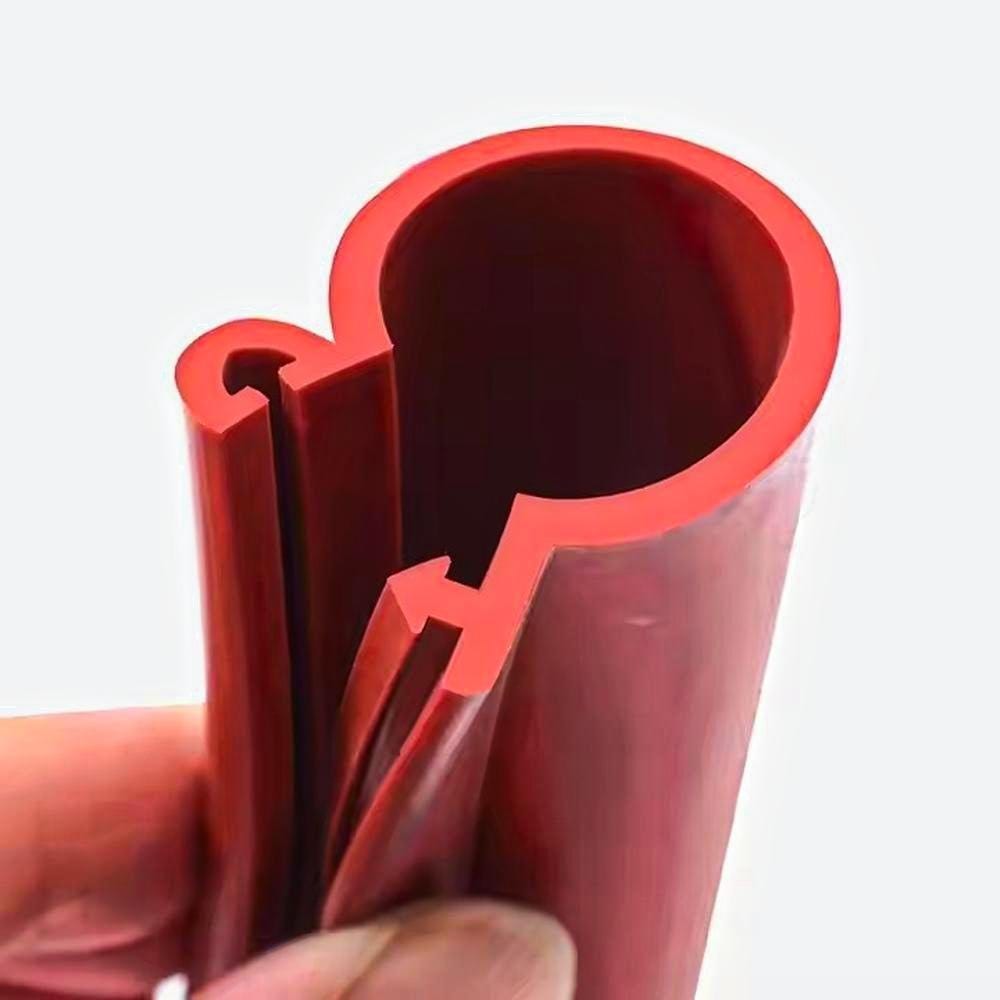

Silicone Overhead Line Cover Manufacturer Price : 300.0 INR/Meter Minimum Order Quantity : 2500 Size : Various sizes as per requirement Breakdown Voltage : 25 kV/mm Heat Conductivity : Low, approx. 0.17 W/m.K Product Type : Overhead Line Cover Rated Voltage : Up to 36 kV Surface Treatment : Smooth, nonstick finish Thermal Conductivity : ~0.17 W/m.K Installation Guideline : Manual snapon fitting, toolfree installation Thickness : 2 mm 5 mm Application : Insulation protection for overhead power lines Tensile Strength : 8 12 MPa Coating Type : Silicone polymer coating Feature : UV resistant, ozone resistant, flame retardant, highly flexible Width : Customizable, typically 30mm 120mm Material : Highquality Silicone Rubber Color : Red (custom colors available) Max Withstanding Temperature : 60C to +250C Layer : Single extruded layer Density : 1.3 Gram per cubic centimeter(g/cm3)
