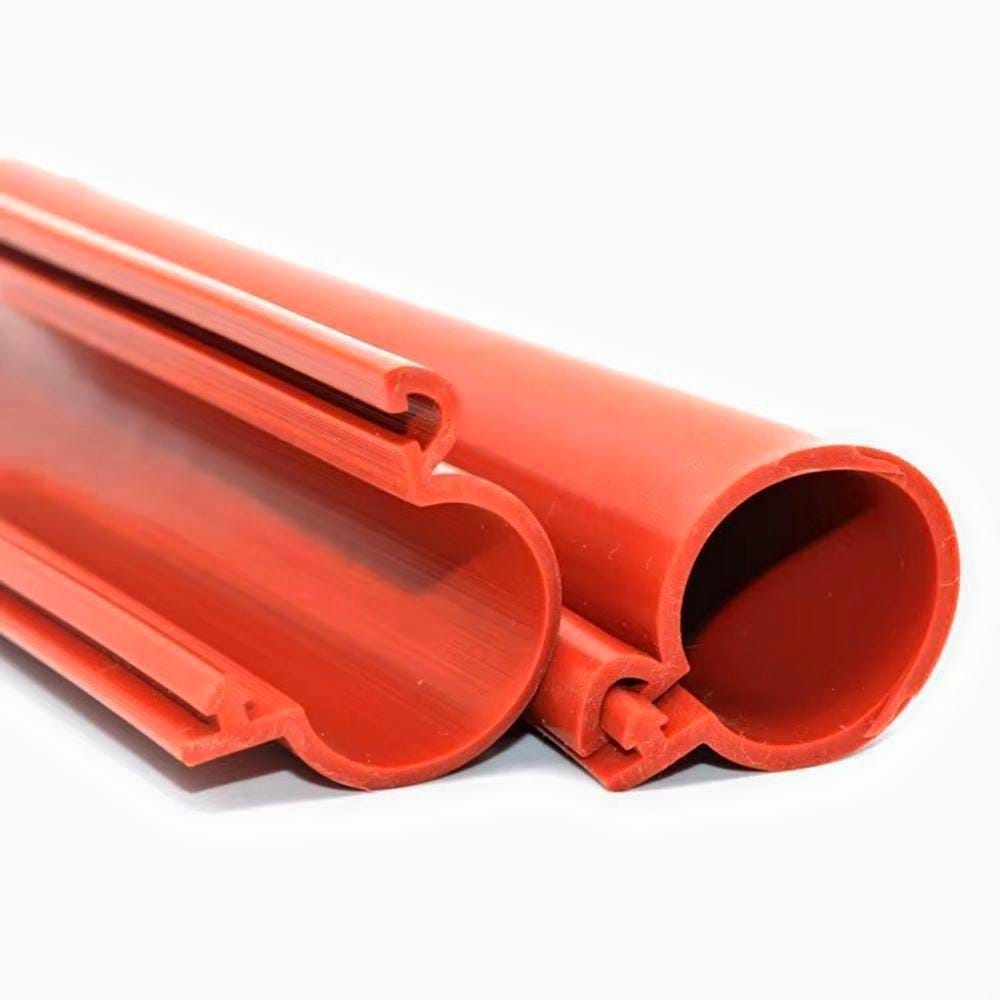

Electrical Conductor Cover

Name: Electrical Conductor Cover
Brand: AMAR INDUSTRIES
Price: 400.0 INR
Availability: InStock

400.0 INR/Piece

Get a Price/Quote

Product Details:

Layer Single layer
Size Custom sizes available
Coating Type UV and weather-resistant coating
Density 1.5 Gram per cubic centimeter(g/cm3)
Surface Treatment Smooth, UV resistant coating
Thermal Conductivity 0.18 W/mK
Feature Fire retardant, flexible, weather resistant
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Electrical Conductor Cover Price And Quantity

Price 400.0 INR/Piece
Minimum Order Quantity 2500 Piece

Electrical Conductor Cover Product Specifications

Max Withstanding Temperature -40C to +180C
Breakdown Voltage 25 kV/mm
Thickness 3-5 mm (customizable)
Tensile Strength 7 - 11 MPa
Size Custom sizes available
Coating Type UV and weather-resistant coating
Material Silicone Rubber
Layer Single layer
Thermal Conductivity 0.18 W/mK
Heat Conductivity Low thermal conductivity, insulating
Feature Fire retardant, flexible, weather resistant
Installation Guideline Snap-fit design for easy onsite installation
Product Type Electrical Conductor Cover
Density 1.5 Gram per cubic centimeter(g/cm3)
Width Customized as per conductor size
Rated Voltage Up to 36 kV
Application Overhead line insulation and protection
Surface Treatment Smooth, UV resistant coating
Color Red

Flame Retardancy Self-extinguishing
Operating Environment Outdoor overhead electrical distribution
Dielectric Strength 20-25 kV/mm
Compatible Conductor Types AAC, AAAC, ACSR, Copper
Resistance Resistant to ozone, UV, chemicals
Water Absorption < 0.5%
Shape Tubular, wrap-around
Elongation at Break 300%
UV Resistance Yes

Product Description

Discover the acclaimed Electrical Conductor Cover, crafted from select silicone rubber for extraordinary strength and durability at a reduced price. Peerless in outdoor overhead electrical distribution, this fire-retardant, weather-resistant cover delivers superb performance in resisting ozone, UV rays, and chemicals. Boasting self-extinguishing properties, a dielectric strength of 20-25 kV/mm, and low thermal conductivity, it provides reliable safety across AAC, AAAC, ACSR, and copper conductors. Available in a range of customized sizes, this product ensures optimum protection and seamless installation, supported by a dealer, distributor, exporter, manufacturer, and supplier chain.

Exceptional Performance for Plant Applications

This Electrical Conductor Cover is expertly engineered for demanding plant environments, delivering superior insulation and protection against harsh outdoor conditions. Its primary competitive advantages include self-extinguishing flame resistance, UV stability, and robust chemical resistance, ensuring long-term performance. The flexible, snap-fit design simplifies onsite installation, saving time and boosting efficiency. Customized dimensions, smooth surface treatment, and fire-retardant features make it an exceptional choice for modern overhead line applications, guaranteeing operational continuity and enhanced safety.

FOB Port, Sample Availability & Packaging Excellence

Our Electrical Conductor Cover is available for shipment from select FOB ports with prompt delivery schedules. We offer samples upon request, with a nominal charge applied to cover packaging and handling costs. Sample policy is designed to ensure buyers receive precisely what they need for evaluation, and all products are securely packaged to maintain integrity during transit. This approach underscores our commitment to customer satisfaction and reliable service throughout the ordering process.

FAQ's of Electrical Conductor Cover:

Q: How is the Electrical Conductor Cover installed?

A: The cover features a snap-fit, wrap-around design that enables quick and easy onsite installation, reducing labor time and eliminating the need for specialized tools.

Q: What makes this Electrical Conductor Cover suitable for outdoor use?

A: It is designed to withstand harsh outdoor environments with superb resistance to UV rays, ozone, chemicals, and moisture, ensuring reliable long-term performance.

Q: When should I consider using a fire-retardant conductor cover?

A: Use this self-extinguishing, flame-retardant cover whenever enhanced fire safety, electrical insulation, and weather protection are required for overhead line systems.

Q: Where can this product be applied for maximum benefit?

A: The cover is ideal for outdoor overhead electrical distribution systems in industrial plants, substations, and utility networks, safeguarding conductors against harsh elements.

Q: What conductor types are compatible with this cover?

A: It supports AAC, AAAC, ACSR, and copper conductors and can be customized to fit various conductor sizes and specifications.

Q: How does the sample delivery process work?

A: After placing a request, samples are provided with a minimal charge to cover packaging and delivery. This ensures you can assess product suitability before making a larger purchase.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Overhead Line Insulation Sleeve (OLIS)' category

Power Line Protective Cover Price : 400.0 INR/Piece Minimum Order Quantity : 2500 Density : 1.5 Gram per cubic centimeter(g/cm3) Width : 40 mm (customizable) Surface Treatment : Smooth Color : Red Rated Voltage : Up to 25 kV Application : Insulation protection for overhead power lines Thermal Conductivity : 0.2 W/mK Feature : Weather resistant, UV resistant, Arc resistant, Flexible Heat Conductivity : Low (insulating) Product Type : Power Line Protective Cover Installation Guideline : Manual snapon or wraparound installation on exposed conductors Material : Silicone Rubber Layer : Single layer Max Withstanding Temperature : 40C to 180C Size : Customizable Length (standard: 1 meter/piece) Thickness : 35 mm Tensile Strength : 8 MPa Breakdown Voltage : 25 kV/mm Coating Type : Noncoated, solid silicone

Send Inquiry

Silicone Overhead Line Cover Manufacturer Price : 300.0 INR/Meter Minimum Order Quantity : 2500 Density : 1.3 Gram per cubic centimeter(g/cm3) Width : Customizable, typically 30mm 120mm Surface Treatment : Smooth, nonstick finish Color : Red (custom colors available) Rated Voltage : Up to 36 kV Application : Insulation protection for overhead power lines Thermal Conductivity : ~0.17 W/m.K Feature : UV resistant, ozone resistant, flame retardant, highly flexible Heat Conductivity : Low, approx. 0.17 W/m.K Product Type : Overhead Line Cover Installation Guideline : Manual snapon fitting, toolfree installation Material : Highquality Silicone Rubber Layer : Single extruded layer Max Withstanding Temperature : 60C to +250C Size : Various sizes as per requirement Thickness : 2 mm 5 mm Tensile Strength : 8 12 MPa Breakdown Voltage : 25 kV/mm Coating Type : Silicone polymer coating

Send Inquiry

Overhead Conductor Cover Price : 300.0 INR/Meter Minimum Order Quantity : 2500 Density : 1.45 Gram per cubic centimeter(g/cm3) Width : Varies by model, typically 30 mm 90 mm Surface Treatment : Smooth finish with antiaging properties Color : Red (other colors available on request) Rated Voltage : Up to 36 kV Application : Insulation and protection for overhead power lines Thermal Conductivity : 0.25 W/mK Feature : UV resistant, weatherproof, flexible, nontracking Heat Conductivity : Low thermal conductivity for insulation Product Type : Overhead Conductor Cover Installation Guideline : Toolfree snap fit design for easy field installation Material : High quality insulating polymer (UV stabilized PVC or Silicone Rubber) Layer : Single layer, homogeneous construction Max Withstanding Temperature : 40C to +110C Size : Custom lengths available (usually 1 m to 3 m pieces) Thickness : 2 mm 5 mm Tensile Strength : 10 MPa Breakdown Voltage : 24 kV/mm Coating Type : None (solid insulating polymer)

Send Inquiry

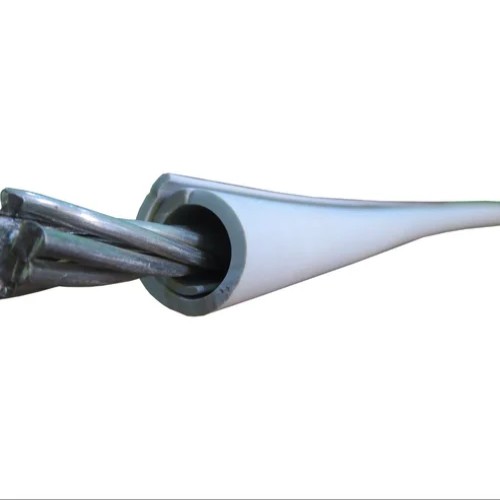

Insulated Overhead Line Cover Price : 350.0 INR/Meter Minimum Order Quantity : 2500 Density : 1.38 Gram per cubic centimeter(g/cm3) Width : Variable, as per line size requirement Surface Treatment : Smooth, AntiTracking Color : Gray Rated Voltage : Up to 11 kV Application : Electrical Overhead Line Insulation Thermal Conductivity : 0.17 W/mK Feature : UV Resistant, AntiCorrosive, Weatherproof Heat Conductivity : Low (functions as thermal insulator) Product Type : Insulated Overhead Line Cover Installation Guideline : Snapfit, Toolfree Installation Material : HighQuality Polyvinyl Chloride (PVC) Layer : Single Layer Extrusion Max Withstanding Temperature : 105C Size : Customized Lengths (Standard: 1m, 2m, 3m) Thickness : 2 mm to 6 mm Tensile Strength : 15 MPa Breakdown Voltage : 25 kV/mm Coating Type : Extruded PVC
