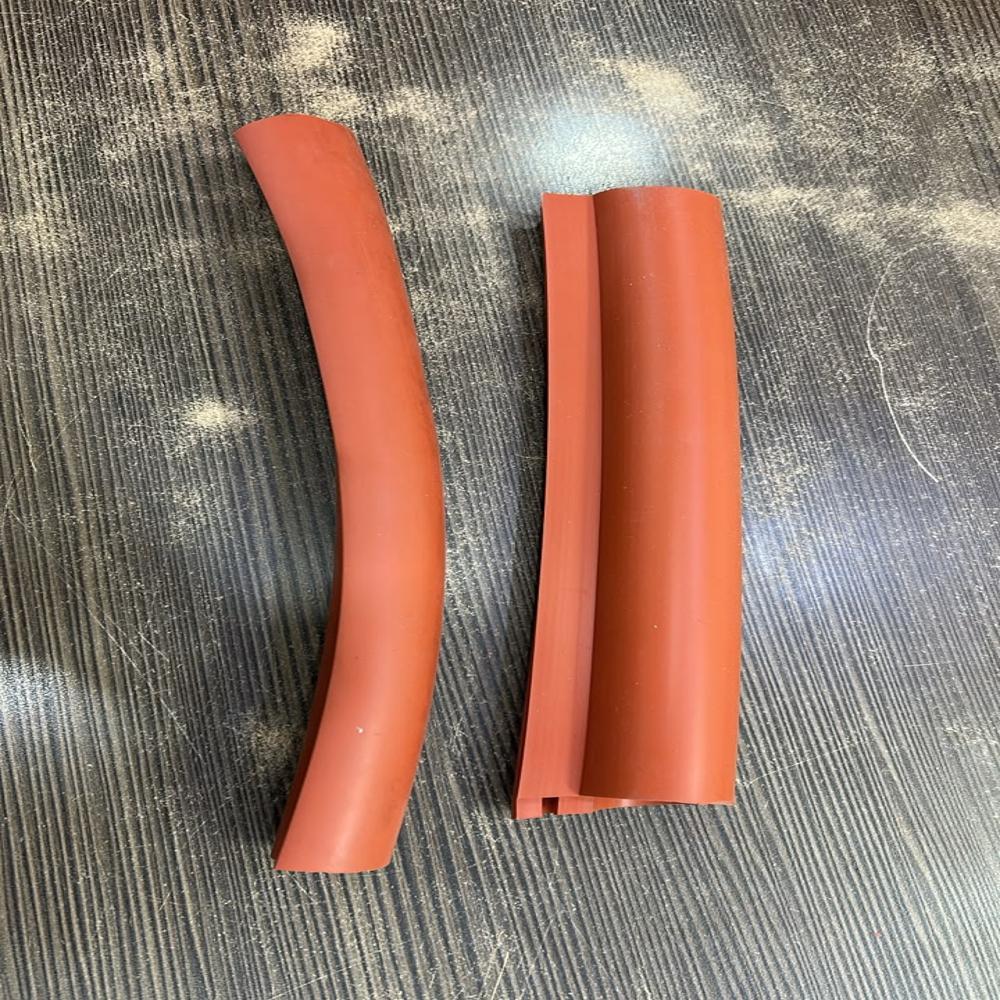

Power Line Protective Cover

Name: Power Line Protective Cover
Brand: AMAR INDUSTRIES
Price: 400.0 INR
Availability: InStock

400.0 INR/Piece

Get a Price/Quote

Product Details:

Installation Guideline Manual snap-on or wrap-around installation on exposed conductors
Density 1.5 Gram per cubic centimeter(g/cm3)
Feature Weather resistant, UV resistant, Arc resistant, Flexible
Coating Type Non-coated, solid silicone
Size Customizable Length (standard: 1 meter/piece)
Layer Single layer
Surface Treatment Smooth
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Power Line Protective Cover Price And Quantity

Price 400.0 INR/Piece
Minimum Order Quantity 2500 Piece

Power Line Protective Cover Product Specifications

Rated Voltage Up to 25 kV
Surface Treatment Smooth
Thermal Conductivity 0.2 W/mK
Width 40 mm (customizable)
Layer Single layer
Thickness 3-5 mm
Coating Type Non-coated, solid silicone
Size Customizable Length (standard: 1 meter/piece)
Material Silicone Rubber
Product Type Power Line Protective Cover
Heat Conductivity Low (insulating)
Density 1.5 Gram per cubic centimeter(g/cm3)
Feature Weather resistant, UV resistant, Arc resistant, Flexible
Max Withstanding Temperature -40C to 180C
Tensile Strength > 8 MPa
Breakdown Voltage >25 kV/mm
Color Red
Application Insulation protection for overhead power lines
Installation Guideline Manual snap-on or wrap-around installation on exposed conductors

Weathering Resistance Excellent
Standards Compliance IEC 60243, ASTM D2303
Flame Retardancy Self-extinguishing
Storage Condition Store in cool, dry place, away from direct sunlight
Elongation at Break >200%
Operating Temperature Range -40C to 180C
Water Absorption <0.5%
UV Resistance Yes
Packing Bundled or individually packed as per requirement
Dielectric Constant 3.2 (at 50 Hz)

Product Description

This Power Line Protective Cover is a must-have for anyone seeking superior insulation and safety. Crafted from sought-after silicone rubber, it is a true masterpiece in protective engineering-combining flame retardancy, UV, and weathering resistance. Take advantage of this valuable product on sale, boasting a dielectric constant of 3.2, a remarkable elongation rate of over 200%, and breakdown voltage exceeding 25 kV/mm. Its customizable sizing and robust compliance with IEC 60243 and ASTM D2303 make it a prized solution for dealers, manufacturers, exporters, and end-users. Don't miss out on this high-demand, flexible, and solid protective cover!

Unmatched Performance and Versatility

The Power Line Protective Cover offers primary competitive advantages including excellent weather and UV resistance, superior flame retardancy, and outstanding electrical insulation. Used widely for insulation protection of overhead power lines, it reduces the risk of electrical faults and ensures operational safety. Its flexibility and customizable design cater to the unique needs of power utilities, industrial maintenance, energy infrastructure providers, and electrical contractors who seek durable, long-lasting protection for their assets.

Reliable Supply, Secure Transactions, and Competitive Pricing

With robust supply ability, the Power Line Protective Cover maintains consistent market value and quick handover to buyers. Sample availability allows for quality assessment before large-scale orders. Payment terms are flexible, ensuring secure and convenient transactions for distributors and wholesalers. Buyers benefit from the lowest price offers while enjoying premium certified quality. Dedicated support ensures smooth delivery and customizable packing solutions to suit various market demands, making each deal efficient and satisfactory.

FAQ's of Power Line Protective Cover:

Q: How does the Power Line Protective Cover enhance the safety of overhead power lines?

A: The cover provides exceptional insulation and arc resistance, reducing the risks of electrical faults, outages, and hazards caused by environmental factors such as UV exposure, moisture, and weathering.

Q: What is the process for installing the Power Line Protective Cover?

A: Installation involves a straightforward manual snap-on or wrap-around application onto exposed conductors, making it quick and efficient without needing specialized tools.

Q: When should I consider using this protective cover?

A: Employ this cover whenever there is a need to insulate overhead power lines, especially in environments exposed to extreme temperatures, UV radiation, or mechanical stress.

Q: Where is this cover typically used, and by whom?

A: It is commonly incorporated in power utilities, industrial maintenance, and electrical infrastructure by professionals such as contractors, maintenance crews, and energy providers.

Q: What are the main benefits of choosing this product?

A: Users benefit from superior electrical insulation, flame retardancy, flexibility, long service life, and compliance with international safety standards, ensuring reliable protection.

Q: How can I ensure proper storage of the Power Line Protective Cover?

A: Store the product in a cool, dry place, away from direct sunlight, to maintain its physical and mechanical properties for optimal performance over time.
