Silicone Rubber Line Cover

Name: Silicone Rubber Line Cover
Brand: AMAR INDUSTRIES
Price: 300.0 INR
Availability: InStock

300.0 INR/Meter

Get a Price/Quote

Product Details:

Surface Treatment Smooth, Anti-Tracking
Coating Type Plain/Silicone Coated
Thermal Conductivity 0.25 W/mK
Feature Flexible, Weather resistant, UV resistant, Flame retardant
Installation Guideline Simple push-on fitting over cables; ensure tight fit for insulation efficiency
Layer Single layer (Standard); Multiple layers on request
Size Available as per cable diameter/requirement
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Silicone Rubber Line Cover Price And Quantity

Minimum Order Quantity 2500 Meter
Price 300.0 INR/Meter

Silicone Rubber Line Cover Product Specifications

Material Silicone Rubber
Size Available as per cable diameter/requirement
Color Red/Orange
Density 1.25 Gram per cubic centimeter(g/cm3)
Width Customizable, typically 10 mm - 100 mm
Heat Conductivity 0.25 W/mK
Max Withstanding Temperature -60C to +250C
Surface Treatment Smooth, Anti-Tracking
Thickness 0.5 mm - 5 mm
Application Electrical insulation, cable & conductor protection in outdoor and indoor environments
Rated Voltage Up to 25 kV (Can vary based on manufacturer)
Tensile Strength 7 MPa
Coating Type Plain/Silicone Coated
Feature Flexible, Weather resistant, UV resistant, Flame retardant
Breakdown Voltage 20 kV/mm
Thermal Conductivity 0.25 W/mK
Installation Guideline Simple push-on fitting over cables; ensure tight fit for insulation efficiency
Product Type Line Cover
Layer Single layer (Standard); Multiple layers on request

Operating Temperature Range -60C to +250C
Storage Condition Store in a cool, dry place away from direct sunlight
Flammability Class UL 94 V-0
Weather Resistance Excellent (UV and ozone resistant)
Hardness 60 5 Shore A
Chemical Resistance Resistant to acids, alkalis, and oils
Dielectric Strength 20 kV/mm
Elongation at Break 250%
Compatibility Fits aluminum/steel core/ACSR and other power transmission cables
Water Absorption 0.5% (24hrs, 23C)
Standard Length 1 meter, 2 meters, customizable lengths

Product Description

Reserve your access to our renowned Silicone Rubber Line Cover that stands out with crowning technical specifications and favorable reviews in the industry. Featuring an uncommon blend of flexibility and resilience, this product offers a hardness of 60 5 Shore A and elongation at break of 250%. Explore its exceptional weather resistance, dielectric strength of 20 kV/mm, and broad operating range (-60C to +250C). Designed to fit aluminum/steel core/ACSR and other cables, it ensures supreme insulation-ideal for demanding indoor and outdoor environments.

Uncommon Versatility for Modern Electrical Applications

Our silicone rubber line cover is tailored for diverse types of usage, excelling in both residential and industrial settings. Primarily used for electrical insulation and cable protection, it offers crowning advantages, such as UV resistance, flexibility, and a flame-retardant build. Whether safeguarding conductors or ensuring operational reliability, its competitive edge rises from customizable sizes and strong chemical resistance-making it a favored choice among renowned installers, distributors, and end users alike.

Sample Policy and Market Coverage with Favorable Outlay

Samples of our silicone rubber line cover are readily available for evaluation before placing a bulk order. We serve a broad main domestic market, striving to keep the sale price and outlay competitive. Sample transportation is handled efficiently to expedite your decision-making process. Our sample policy is geared toward empowering your purchase experience, ensuring that the product fully meets your requirements prior to extended deployment across varied installations.

FAQ's of Silicone rubber line cover:

Q: How can I install the silicone rubber line cover?

A: The installation process is straightforward-simply push the silicone rubber cover over the cable, ensuring a snug fit for optimal insulation and safety. No specialized tools are required.

Q: What type of cables is this line cover compatible with?

A: The line cover is designed to fit aluminum or steel core conductors, ACSR, and other standard power transmission cables. Customizable width and thickness options ensure compatibility with various cable diameters.

Q: Where can this product be used for best results?

A: This silicone rubber line cover excels in both outdoor and indoor environments, offering excellent protection against weather, UV, ozone, and harsh chemicals. It's ideal for electrical substations, industrial installations, and exposed cable runs.

Q: What are the main benefits of using this silicone rubber cover?

A: Key benefits include high dielectric strength, broad operating temperature range, resistance to tracking and weather, flexibility, easy installation, and compliance with strict flammability and voltage standards.

Q: Is a sample available before making a bulk purchase?

A: Yes, samples are available so that buyers can evaluate the product's fit and performance prior to placing bulk orders. Please contact us for sample policy details and delivery arrangements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Overhead Line Insulation Sleeve (OLIS)' category

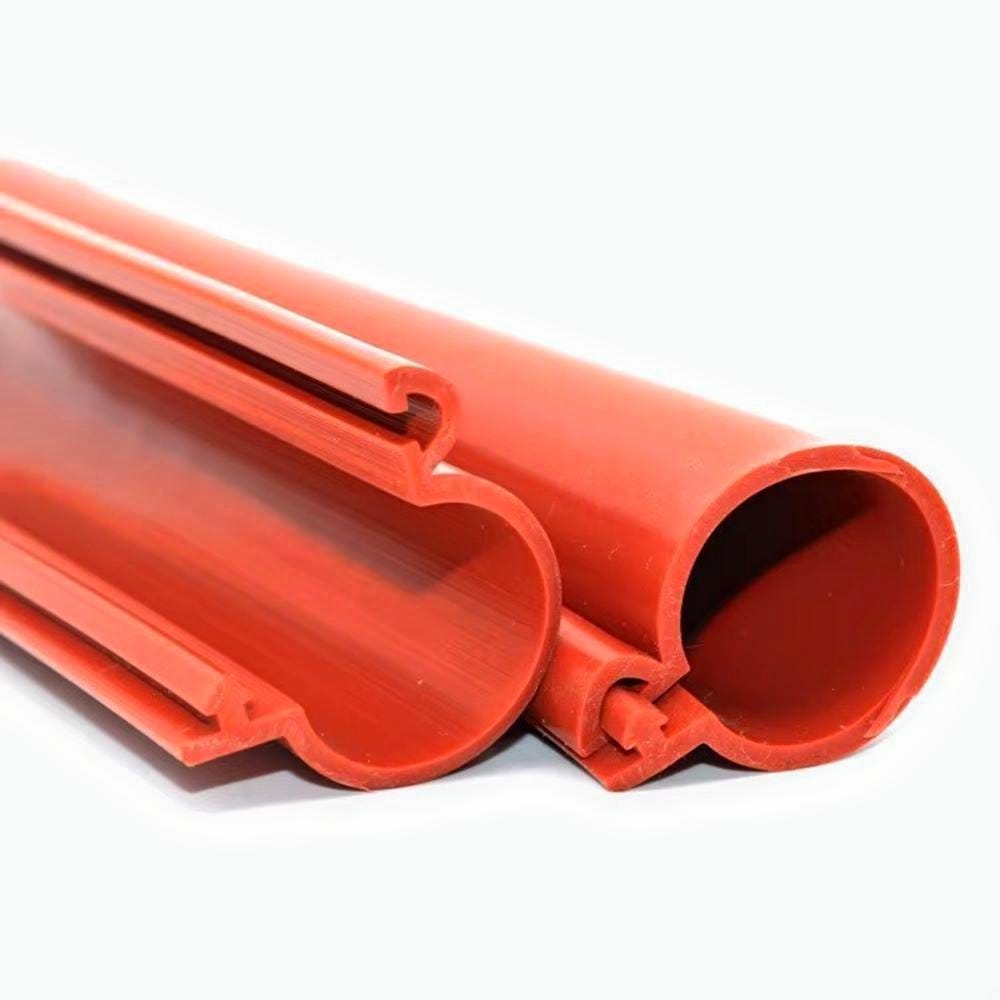

Electrical Conductor Cover Price : 400.0 INR/Piece Minimum Order Quantity : 2500 Surface Treatment : Smooth, UV resistant coating Thickness : 35 mm (customizable) Application : Overhead line insulation and protection Rated Voltage : Up to 36 kV Tensile Strength : 7 11 MPa Coating Type : UV and weatherresistant coating Breakdown Voltage : 25 kV/mm Feature : Fire retardant, flexible, weather resistant Thermal Conductivity : 0.18 W/mK Installation Guideline : Snapfit design for easy onsite installation Product Type : Electrical Conductor Cover Layer : Single layer Material : Silicone Rubber Size : Custom sizes available Color : Red Density : 1.5 Gram per cubic centimeter(g/cm3) Width : Customized as per conductor size Heat Conductivity : Low thermal conductivity, insulating Max Withstanding Temperature : 40C to +180C
