Bus Bar Connectors for GIS

1500.0 INR/Piece

Get a Price/Quote

Product Details:

Efficiency Above 95%
Surface Finish Tin Plated
Overheating Protection YES
Feature High Conductivity, Corrosion Proof
Connector Type Bus Bar
Insulation Material PVC
Shape Rectangular
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Bus Bar Connectors for GIS Price And Quantity

Price 1500.0 INR/Piece
Minimum Order Quantity 10 Piece

Bus Bar Connectors for GIS Product Specifications

Energy Consumption Low
Humidity % 95% RH
Mounting Type Panel Mount
Operating Temperature -10C to +85C
Product Type Bus Bar Connector
Power Factor 0.98
Dimension (L*W*H) 95 mm x 25 mm x 12 mm
Weight 120 g
Rated Voltage 415 V
Connector Type Bus Bar
Size Standard
Color Silver
IP Rating IP20
Insulation Material PVC
Shape Rectangular
Material Copper
Connection Type Screw Type
Application Electrical Panel, Switchgear, Distribution Box
Input Voltage 415 V
Feature High Conductivity, Corrosion Proof
Frequency (MHz) 50-60 Hz
Efficiency Above 95%
Phase Three Phase
No Of Poles 2 Poles
Output Type Terminal Output
Surface Finish Tin Plated
Overheating Protection YES
Protection Level IP20

RoHS Compliant Yes
Packaging Type Box
Minimum Order Quantity 100 pieces
Flame Retardant Yes
Current Rating 100A
Contact Resistance 0.2 m
Compliance Standard IEC 60947-1
Cable Entry Dual Side

Bus Bar Connectors for GIS Trade Information

Supply Ability 1000 Piece Per Day
Delivery Time 1-15 Days

Product Description

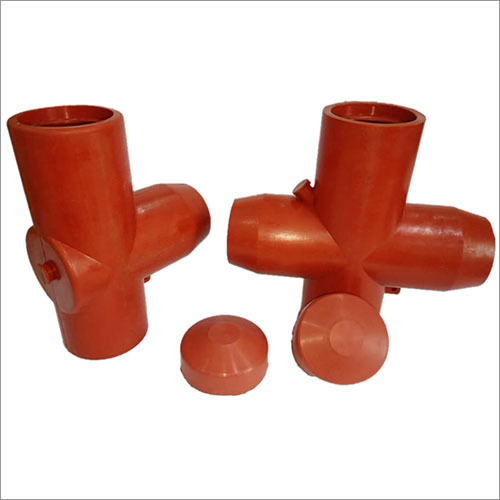

The offered Busbar connectors are made available by us in red color. The offered connectors are easy to install and made for use in commercial and industrial applications. They are made for highly durable and long service life. The offered help in connecting the busbars efficiently and make them able to work perfectly. a busbar (also bus bar) is a metallic strip or bar, typically housed inside switchgear, panel boards, and bus way enclosures for local high current power distribution. The busbar connectors are also used to connect high voltage equipment at electrical switchyards, and low voltage equipment in battery banks.

Robust Design and High Conductivity

Engineered with premium copper and tin-plated construction, these bus bar connectors ensure excellent electrical conductivity and prolonged life. The flame-retardant PVC insulation not only adds an extra layer of safety but also contributes to the product's overall reliability, making them ideal for essential electrical infrastructure.

Safe and Effortless Installation

With a screw-type terminal configuration and dual side cable entry, these connectors are user-friendly and enable secure, quick panel mounting. Their IP20 protection rating and built-in overheating safeguard guarantee a protected environment for your electrical systems, even in areas with high humidity or fluctuating temperatures.

FAQ's of Bus Bar Connectors:

Q: How can these bus bar connectors be used in electrical panels and switchgear?

A: These connectors are specifically designed for integration into electrical panels, switchgear, and distribution boxes. Their dual side cable entry and screw-type terminals make installation simple and efficient, facilitating reliable power connections in three-phase systems.

Q: What are the compliance and safety standards for these connectors?

A: The bus bar connectors meet IEC 60947-1 and are RoHS compliant, with flame-retardant properties and an IP20 protection rating, ensuring safety, environmental friendliness, and suitability for professional electrical applications.

Q: When is it recommended to use these connectors over other types?

A: These connectors are ideal when high conductivity, low contact resistance, and superior corrosion protection are required, especially in settings with strict safety standards, moderate power factor requirements, and the need for reliable panel mounting.

Q: Where can I source these bus bar connectors in India?

A: You can obtain these connectors from authorized dealers, distributors, exporters, manufacturers, producers, suppliers, traders, and wholesalers across India, ensuring accessibility for bulk orders and reliable after-sales support.

Q: What is the process for mounting and connecting these bus bars in a distribution box?

A: To install, simply secure the rectangular bus bar onto the panel using the screw-type mechanism, insert cables via either side, and tighten the screws to ensure a firm and safe connection. Always follow manufacturer guidelines for optimal performance and safety.

Q: What benefits do users gain from these connectors regarding efficiency and durability?

A: With above 95% efficiency, low energy consumption, high power factor (0.98), and corrosion-proof, tin-plated surfaces, users benefit from dependable, long-term operation, reduced maintenance, and energy-efficient power distribution.

Q: How does the product ensure safety under extreme operating conditions?

A: Constructed with flame-retardant materials, an IP20 enclosure, and overheating protection, these connectors are rated for -10C to +85C operating temperatures and 95% humidity, delivering reliable performance even in challenging environments.
