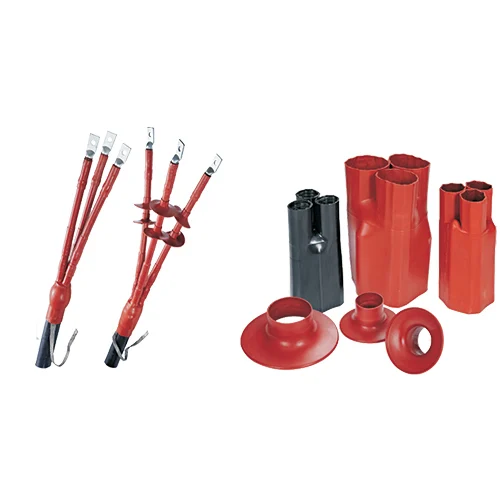

End Termination Kits

Name: End Termination Kits
Brand: AMAR INDUSTRIES
Price: 2000.0 INR
Availability: InStock

2000.0 INR/Unit

Get a Price/Quote

Product Details:

Shape Tube and Cap Form
Mounting Type Cable Mounted
Connector Type Lug Compatible
Insulation Material Heat Shrinkable Polyolefin
Surface Finish Smooth
Efficiency 98%
Power Factor >0.98
Click to View more

Request to Call Back Send Inquiry

Product Details

End Termination Kits Price And Quantity

Price 2000.0 INR/Unit
Minimum Order Quantity 1 Unit

End Termination Kits Product Specifications

Feature UV Resistant, Weatherproof, Abrasion Resistant
Rated Voltage Up to 36 kV
Efficiency 98%
Power Factor >0.98
Material Cross-linked Polyolefin / Heat Shrinkable Material
Dimension (L*W*H) Standard kit sizes, customized on request
Shape Tube and Cap Form
Input Voltage Up to 36 kV
Surface Finish Smooth
Connector Type Lug Compatible
Mounting Type Cable Mounted
Insulation Material Heat Shrinkable Polyolefin
Connection Type Crimp / Bolt
Protection Level High Electrical Insulation
Application Cable Termination for Indoor & Outdoor Use
Phase Three Phase
IP Rating IP65 & above
Energy Consumption N/A (Passive device)
Size As per cable size (10 mm2 to 630 mm2 and above)
Weight Approx. 300-700 g per kit
Frequency (MHz) 50 - 60 Hz
Overheating Protection YES
No Of Poles 3
Output Type Cable End Connection
Color Red, Black
Operating Temperature -40C to +90C
Humidity % 95% RH
Product Type End Termination Kit

Chemical Resistance Excellent against Alkali, Acids & Salts
Flammability Self-extinguishing
Tensile Strength >14 MPa
Thermal Class Class H
Sealant Included Yes
Shelf Life 36 months
UV Resistance Complies with ASTM G154
Shrink Ratio 3:1
Dielectric Strength >20 kV/mm
Installation Type Heat Shrinkable
