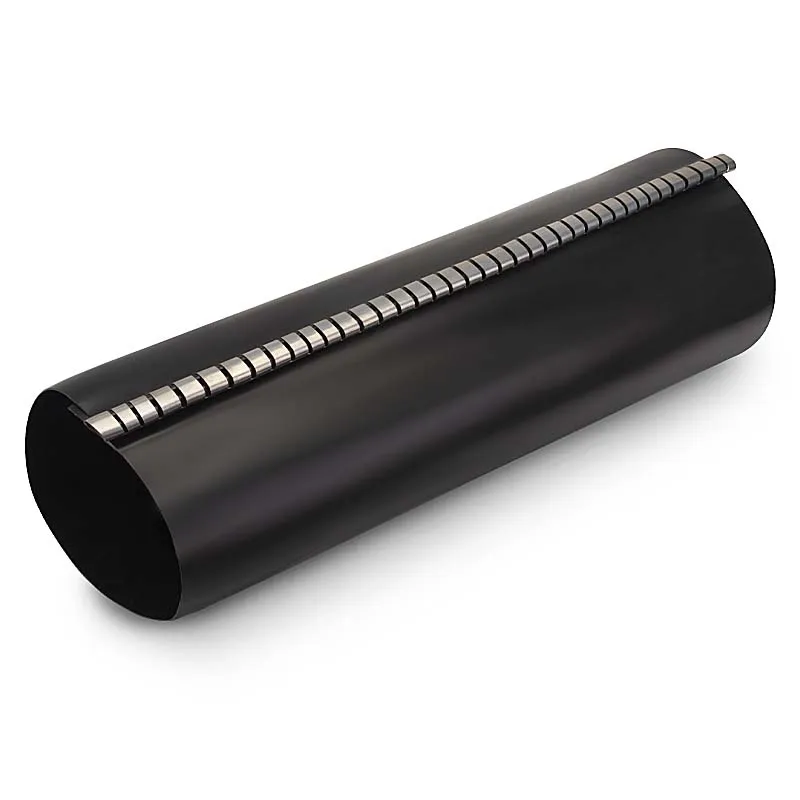

Heat Shrink Cable Repair Sleeves

Name: Heat Shrink Cable Repair Sleeves
Brand: AMAR INDUSTRIES
Price: 700.0 INR
Availability: InStock

700.0 INR/Unit

Get a Price/Quote

Product Details:

Feature Heat shrinkable, corrosion resistant, easy installation
Mounting Type Wrap-Around, Heat Applied
Insulation Material Cross-linked Polyolefin
Operating Temperature -40C to +125C
Humidity % Up to 98% RH
Shape Cylindrical Sleeve
Efficiency High Sealing and Insulation Efficiency
Click to View more

Request to Call Back Send Inquiry

Product Details

Heat Shrink Cable Repair Sleeves Price And Quantity

Price 700.0 INR/Unit
Minimum Order Quantity 1 Unit

Heat Shrink Cable Repair Sleeves Product Specifications

Connection Type Wrap-around
Output Type Cable Protection
No Of Poles 1 (Single sleeve for one cable)
Weight Varies by size (Typically 50-200g per sleeve)
Operating Temperature -40C to +125C
Humidity % Up to 98% RH
Shape Cylindrical Sleeve
Input Voltage Up to 36 kV
Color Black
Material Cross-linked Polyolefin with Metal Channel
Feature Heat shrinkable, corrosion resistant, easy installation
Mounting Type Wrap-Around, Heat Applied
Frequency (MHz) 50 - 60 Hz
Insulation Material Cross-linked Polyolefin
Application Cable Repair and Insulation
Protection Level Waterproof, Weatherproof
Phase Suitable for Single or Three Phase Cables
Surface Finish Smooth, Matt Finish
Dimension (L*W*H) Length: 100 mm - 1000 mm, Diameter: 20 mm - 200 mm
Size Multiple sizes available
Rated Voltage Up to 1 kV
Efficiency High Sealing and Insulation Efficiency
IP Rating IP67
Product Type Heat Shrink Cable Repair Sleeve
Overheating Protection Yes, Thermal Shrink Protection
Connector Type N/A; For Over Existing Connections

Tensile Strength >14 MPa (after shrinkage)
Minimum Shrink Temperature 120C
Packaging Type Polybag, Carton Box
Adhesive Lining Yes (hot melt for enhanced sealing)
Longitudinal Shrinkage <10%
UV Stability High, suitable for direct sunlight exposure
Environment Suitability Indoor & Outdoor use
Shelf Life 24 Months in original packaging
Adhesion to Steel >125 N/100mm
Application Voltage Range Low to Medium voltage applications
Corrosion Resistance Excellent
Flame Retardancy Yes, Self-Extinguishing
Installation Tools Required Heat Gun or Blowtorch
Reusability Single-use (non-reusable after shrinking)
Standards Compliance IEC 60684, RoHS Compliant
Chemical Resistance Excellent to oils, solvents, acids and alkalis
Elongation at Break >300% pre-shrink
Dielectric Strength >20 kV/mm
Shrink Ratio 3:1 or 4:1 (varies by size)
