Cable Jointing Kits

Name: Cable Jointing Kits
Brand: AMAR INDUSTRIES
Price: 1500.0 INR
Availability: InStock

1500.0 INR/Unit

Get a Price/Quote

Product Details:

Surface Finish Smooth Heat Shrink Finish
Shape Tube/Fitting
Connector Type Cable Lug/Cable Core
Power Factor >0.99
Mounting Type In-line, Outdoor, or Indoor
Efficiency High (minimum loss during jointing)
Overheating Protection Provided by high-grade insulation
Click to View more

Request to Call Back Send Inquiry

Product Details

Cable Jointing Kits Price And Quantity

Price 1500.0 INR/Unit
Minimum Order Quantity 1 Unit

Cable Jointing Kits Product Specifications

Efficiency High (minimum loss during jointing)
Phase Single/Three Phase
Weight Variable (depends on kit type and size)
Protection Level Provides Weather and Moisture Protection
Overheating Protection Provided by high-grade insulation
Input Voltage Up to specified rated voltage (typically up to 33kV)
Operating Temperature -40C to +120C
Energy Consumption N/A (passive kit)
Material Heat Shrinkable Polymeric Material
Insulation Material Cross Linked Polyolefin/EPDM Rubber
Feature Waterproof, UV Resistant, Flame Retardant, High Dielectric Strength
Humidity % Up to 95% relative humidity
IP Rating IP65/IP66 (Depending on installation)
Frequency (MHz) 50/60 Hz (typical for power cables)
Dimension (L*W*H) Customized as per cable dimensions
Connector Type Cable Lug/Cable Core
Color Red and Black (standard for insulation kits)
Connection Type Crimp or Solder (as per kit design)
Shape Tube/Fitting
Surface Finish Smooth Heat Shrink Finish
Mounting Type In-line, Outdoor, or Indoor
Product Type Cable Jointing Kit
Output Type Cable Joint
Rated Voltage Up to 33kV (varies with kit)
Size Available for various cable sizes
No Of Poles 3 or 4 poles (as per cable specification)
Power Factor >0.99
Application Power Cable Jointing, Termination, and Insulation

Type Indoor/Outdoor Joint & Termination
Applicable Cable Types XLPE/PVC/EPR Cables
Ultraviolet Resistance UV Stabilized
Standards Complied IEC 60502, IS 13573
Tensile Strength High
Voltage Grade Low, Medium, and High Voltage
Installation Easy, With illustrated manual included
Shelf Life Minimum 24 Months
Chemical Resistance Excellent
Dielectric Strength >15 kV/mm

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Bus Bar Connectors' category

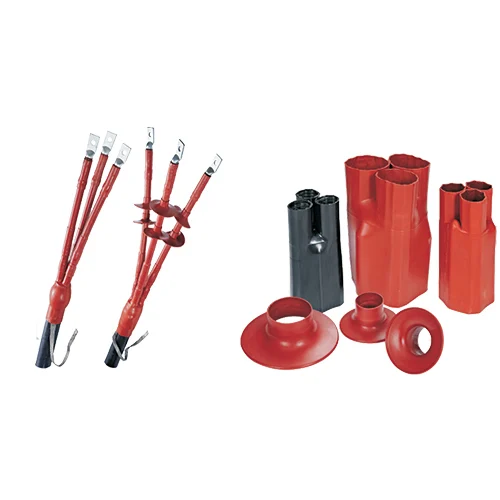

End Termination Kits Price : 2000.0 INR/Unit Minimum Order Quantity : 1 Dimension (L*W*H) : Standard kit sizes, customized on request Color : Red, Black Connection Type : Crimp / Bolt Surface Finish : Smooth Shape : Tube and Cap Form Mounting Type : Cable Mounted Rated Voltage : Up to 36 kV Product Type : End Termination Kit Size : As per cable size (10 mm2 to 630 mm2 and above) Application : Cable Termination for Indoor & Outdoor Use Efficiency : 98% Weight : Approx. 300700 g per kit Overheating Protection : YES Protection Level : Other, High Electrical Insulation Operating Temperature : 40C to +90C Material : Crosslinked Polyolefin / Heat Shrinkable Material Humidity % : 95% RH IP Rating : IP65 & above Feature : UV Resistant, Weatherproof, Abrasion Resistant Insulation Material : Heat Shrinkable Polyolefin Connector Type : Lug Compatible Phase : Three Phase Frequency (MHz) : 50 60 Hz Output Type : Cable End Connection No Of Poles : 3 Input Voltage : Up to 36 kV Power Factor : 0.98 Energy Consumption : N/A (Passive device)

Send Inquiry

Bus Bar Connectors for GIS Price : 1500.0 INR/Piece Minimum Order Quantity : 1000 Dimension (L*W*H) : 95 mm x 25 mm x 12 mm Color : Silver Connection Type : Screw Type Surface Finish : Tin Plated Shape : Rectangular Mounting Type : Panel Mount Rated Voltage : 415 V Product Type : Bus Bar Connector Size : Standard Application : Electrical Panel, Switchgear, Distribution Box Efficiency : Above 95% Weight : 120 g Overheating Protection : YES Protection Level : Other, IP20 Operating Temperature : 10C to +85C Material : Copper Humidity % : 95% RH IP Rating : IP20 Feature : High Conductivity, Corrosion Proof Insulation Material : PVC Connector Type : Bus Bar Phase : Three Phase Frequency (MHz) : 5060 Hz Output Type : Terminal Output No Of Poles : 2 Poles Input Voltage : 415 V Power Factor : 0.98 Energy Consumption : Low

Send Inquiry

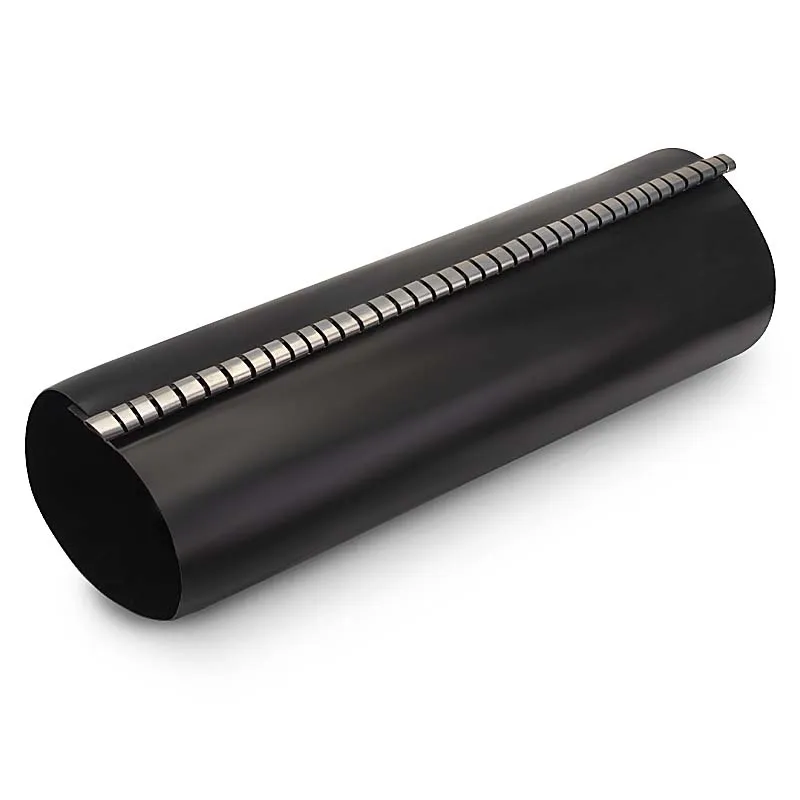

Heat Shrink Cable Repair Sleeves Price : 700.0 INR/Unit Minimum Order Quantity : 1 Dimension (L*W*H) : Length: 100 mm 1000 mm, Diameter: 20 mm 200 mm Color : Black Connection Type : Wraparound Surface Finish : Smooth, Matt Finish Shape : Cylindrical Sleeve Mounting Type : WrapAround, Heat Applied Rated Voltage : Up to 1 kV Product Type : Heat Shrink Cable Repair Sleeve Size : Multiple sizes available Application : Cable Repair and Insulation Efficiency : High Sealing and Insulation Efficiency Weight : Varies by size (Typically 50200g per sleeve) Overheating Protection : Other, Yes, Thermal Shrink Protection Protection Level : Other, Waterproof, Weatherproof Operating Temperature : 40C to +125C Material : Crosslinked Polyolefin with Metal Channel Humidity % : Up to 98% RH IP Rating : IP67 Feature : Heat shrinkable, corrosion resistant, easy installation Insulation Material : Crosslinked Polyolefin Connector Type : N/A; For Over Existing Connections Phase : Suitable for Single or Three Phase Cables Frequency (MHz) : 50 60 Hz Output Type : Cable Protection No Of Poles : 1 (Single sleeve for one cable) Input Voltage : Up to 36 kV
