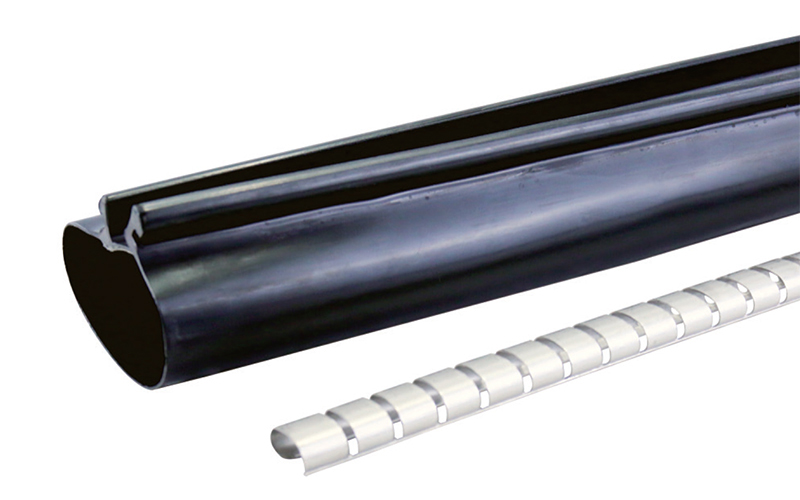

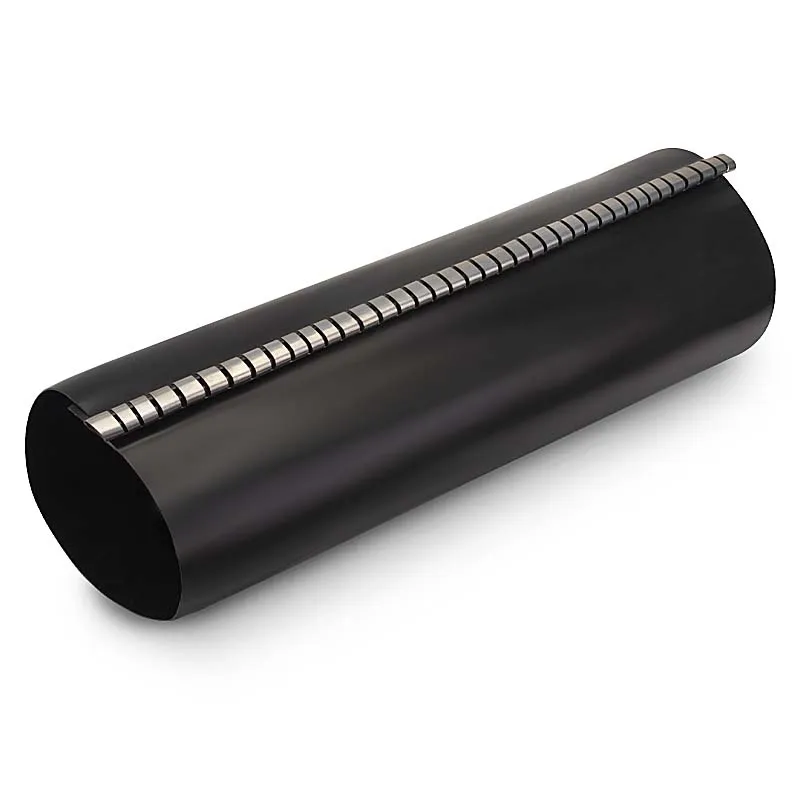

Heat Shrink Wrap Around Repair Sleeves

Heat Shrink Wrap Around Repair Sleeves Price And Quantity

• Minimum Order Quantity 1 Unit
• Price 700.0 INR/Unit

Heat Shrink Wrap Around Repair Sleeves Product Specifications

• Protection Level High Electrical & Mechanical Protection
• Product Type Heat Shrink Wrap Around Repair Sleeve
• IP Rating IP68 (when properly installed)
• Connector Type External Stainless Steel Channel
• Mounting Type Field Installation
• Humidity % Up to 100% RH (suitable for outdoor and underground use)
• Feature UV Resistant, High Shrink Ratio, Flame Retardant, Seals Moisture
• Surface Finish Smooth, Semi-Gloss
• Material Crosslinked Polyolefin with Hot Melt Adhesive
• Rated Voltage Up to 36 kV (depending on model)
• Application Cable Joint and Repair, Protection and Insulation for Power Cables
• Dimension (L*W*H) Available in various sizes (customizable as per cable diameter and length)
• Size Multiple sizes available (as per cable size)
• Connection Type Wrap Around, External Metal Channel Lock
• Shape Cylindrical Wrap-Around Sleeve
• Insulation Material Crosslinked Polyolefin
• Efficiency Highly Efficient Joining & Repair Solution
• Overheating Protection Yes, offers insulation and thermal protection
• Weight Varies as per size (typically light-weight)
• Color Black
• Operating Temperature -40C to +120C

• Adhesive Lining Hot Melt Sealant for Excellent Moisture Seal
• Minimum Shrink Temperature 110C
• Corrosion Protection Yes, Prevents Corrosion of Cable Metal Parts
• Dielectric Strength 20 kV/mm
• Flammability Self-extinguishing
• Shrink Ratio 3:1 Standard
• Standards Compliance IEC, ASTM, RoHS Compliant
• Chemical Resistance Resistant to Acids, Alkalis, Fuels & Oils
• Shelf Life Up to 5 Years (Unopened Pack)
• Mechanical Lock Type Stainless Steel Channel & Rail
• Reusable No, for Single Use Only
• Installation Method Heated by Torch or Hot Air Gun
